The LB5926L 9 kHz to 26.5 GHz True RMS Power Sensor

$5,344.00

Product total
Options total
Grand total

Description

True RMS Average Power Sensor+™ With Triggering 9 kHz to 18 GHz

The LB5926L True RMS, high sensitivity, high accuracy RF & microwave power sensor has frequency coverage from 9kHz to 26.5GHz and an 80dB dynamic range making ideal for EMC applications, general purpose average power and scalar measurements. The sensor features a fast measurement speed, a broad dynamic range, and the widest set of options for programmatic and embedded applications in the industry. LadyBug’s feature rich Power Meter Application is provided with each sensor. Time domain trace visibility is included and aids in setting markers. The sensor is useful in research & development, manufacturing & service applications including radar, satellite and telecommunications.

Recommended for average power measurements on signals of any modulation type including: 802.11ac, gsm, cdma 2000, CDMA (IS-95), TDMA, Multi-Tone, OFDM, CW, QAM and more.

Highlights

  • Converge from 9 kHz to 26.5 GHz
  • Accurate power measurements on any modulated signal
  • Dynamic Range: -60 dBm to +26 dBm
  • Just Measure – Patented NoZero NoCal before use technology
  • A variety of options such as triggering, security & analog outputs
  • Includes internal and external triggering
  • Compatible with U2000
  • SPI and I2C interfaces for ATE, direct control & embedded applications
  • USBTMC, USBHID IVI foundation & SCPI command set
  • SCPI command set through all three interfaces
  • Extensive internal memory for trace and long term logging
  • Real time clock and backup

Additional Options & Connectors

  • SMA Male – OSM
  • SMA Female – OSF

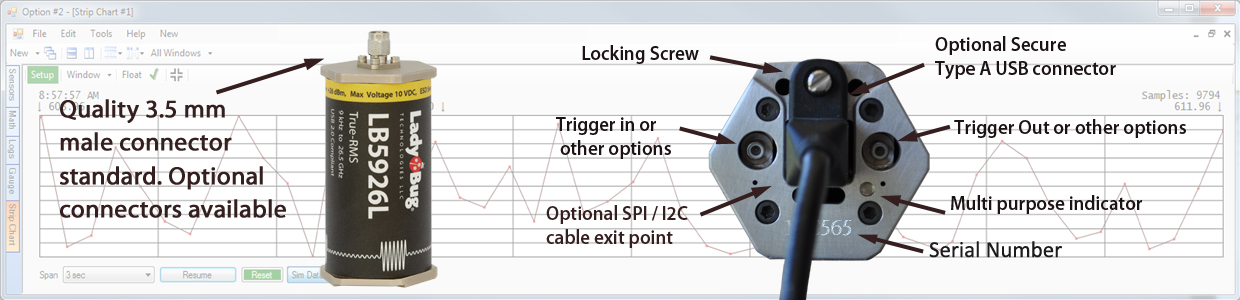

  • 3.5mm Male – 35M
  • Analog Recorder Output – Opt. 001
